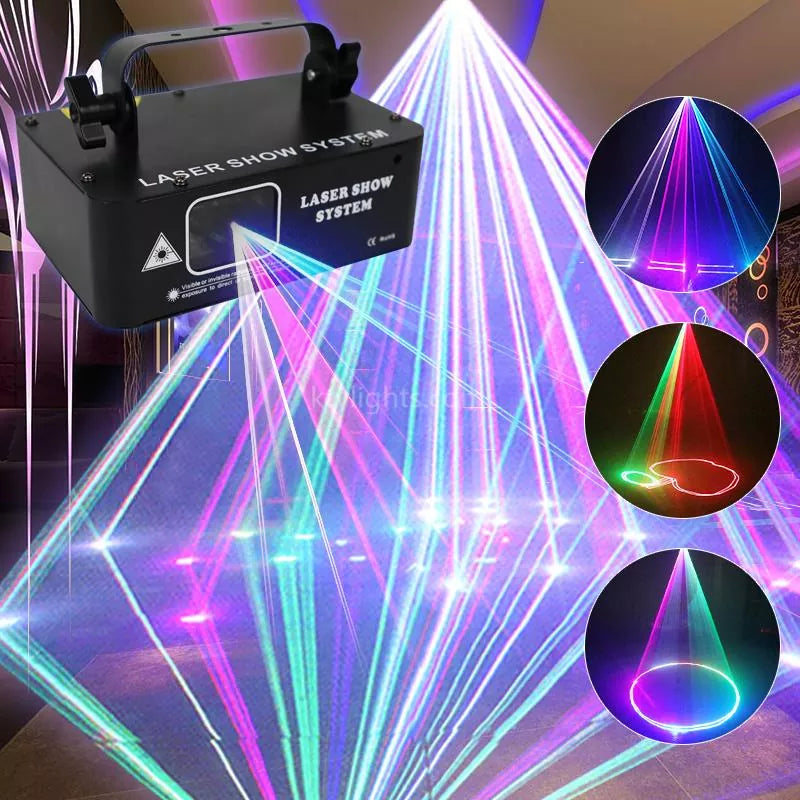

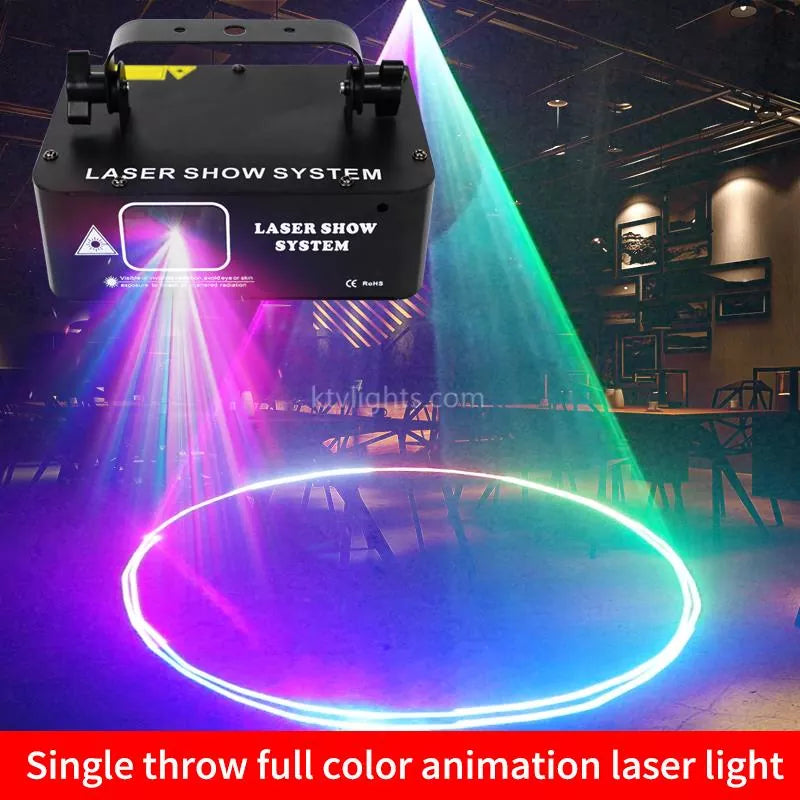

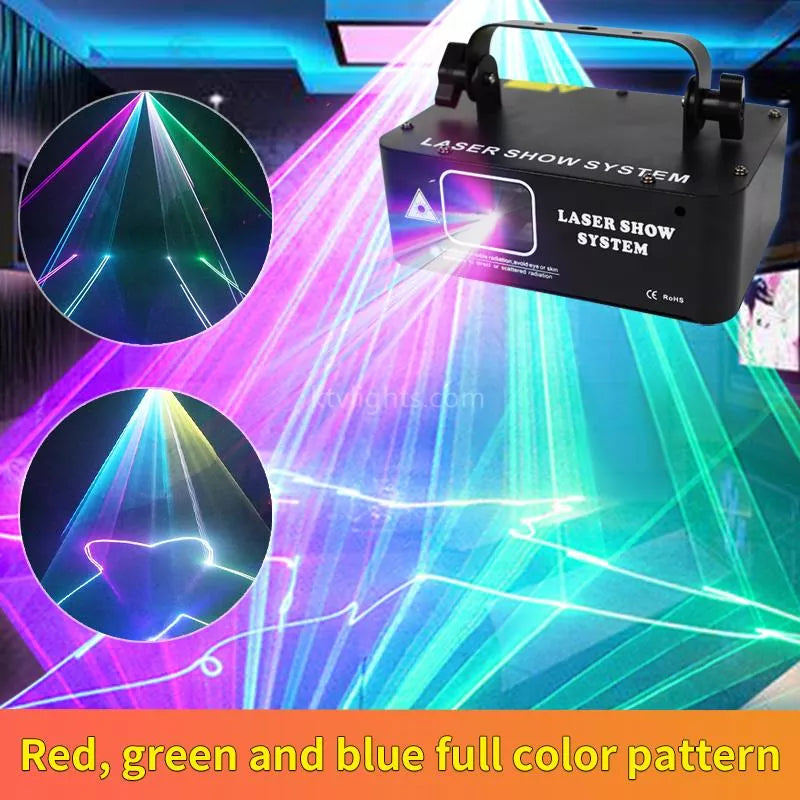

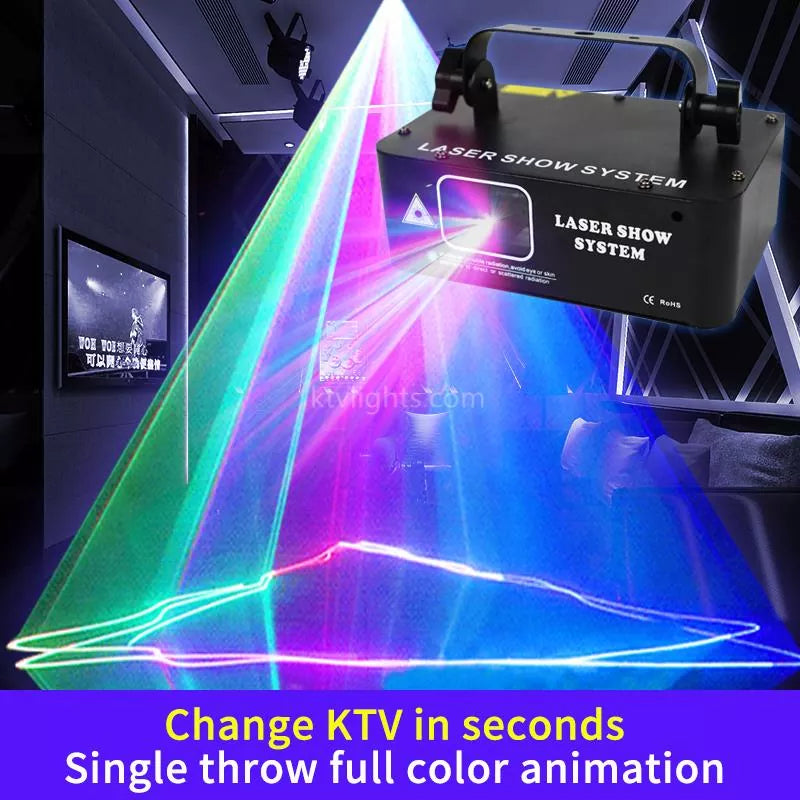

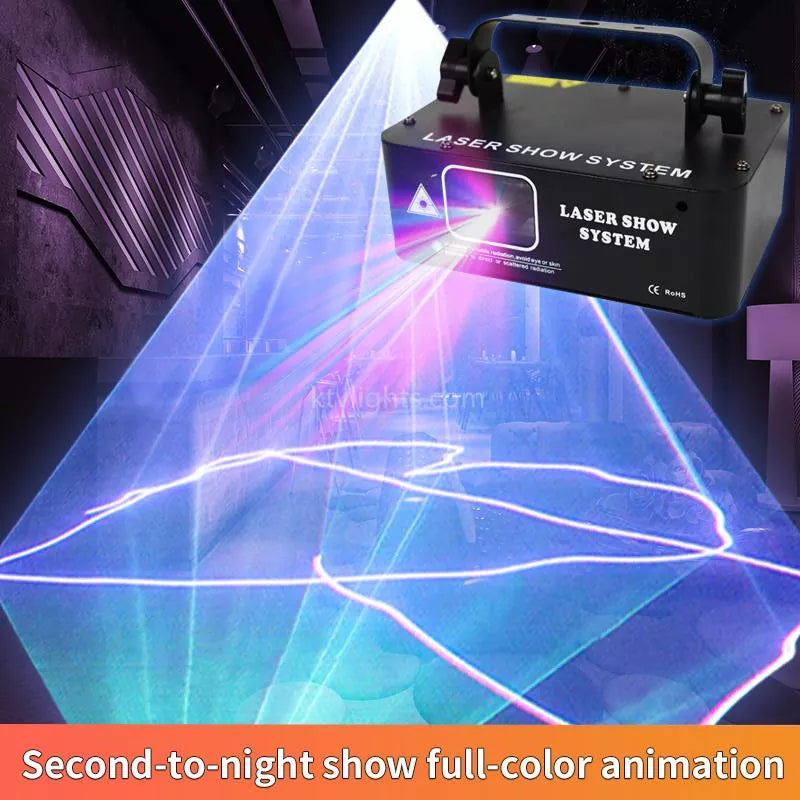

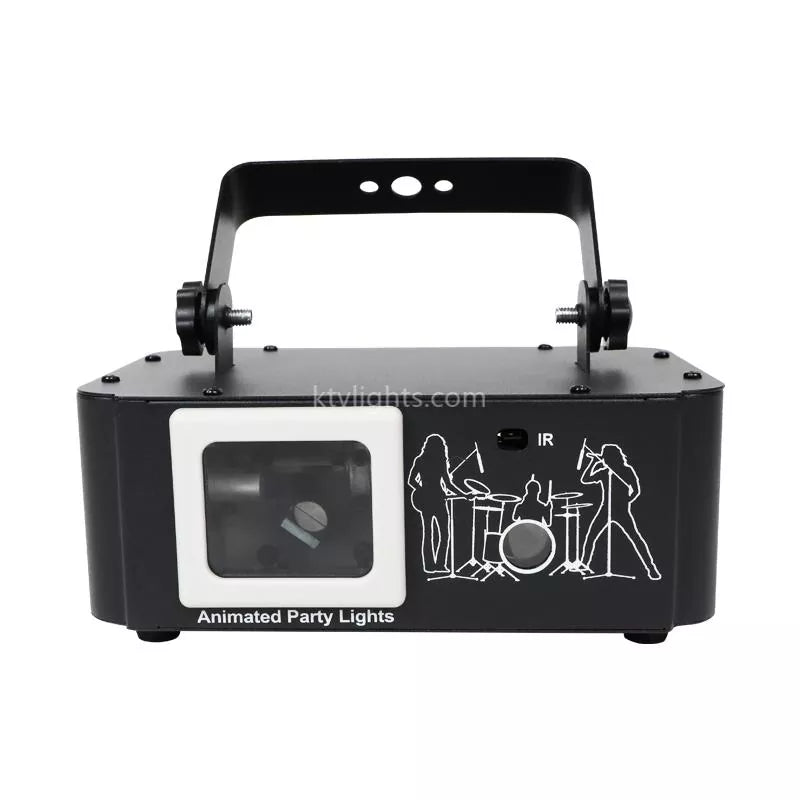

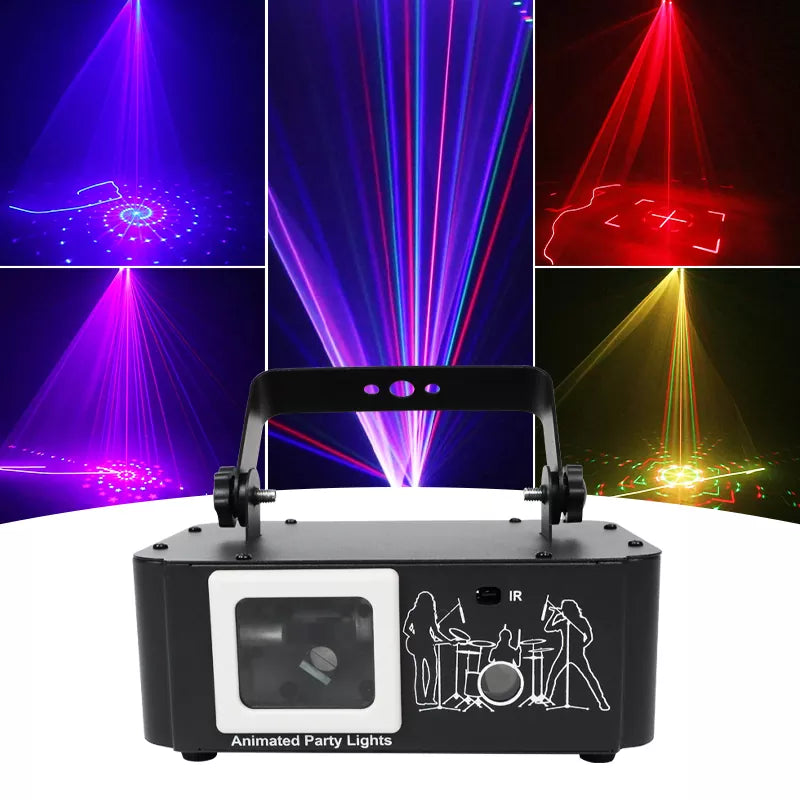

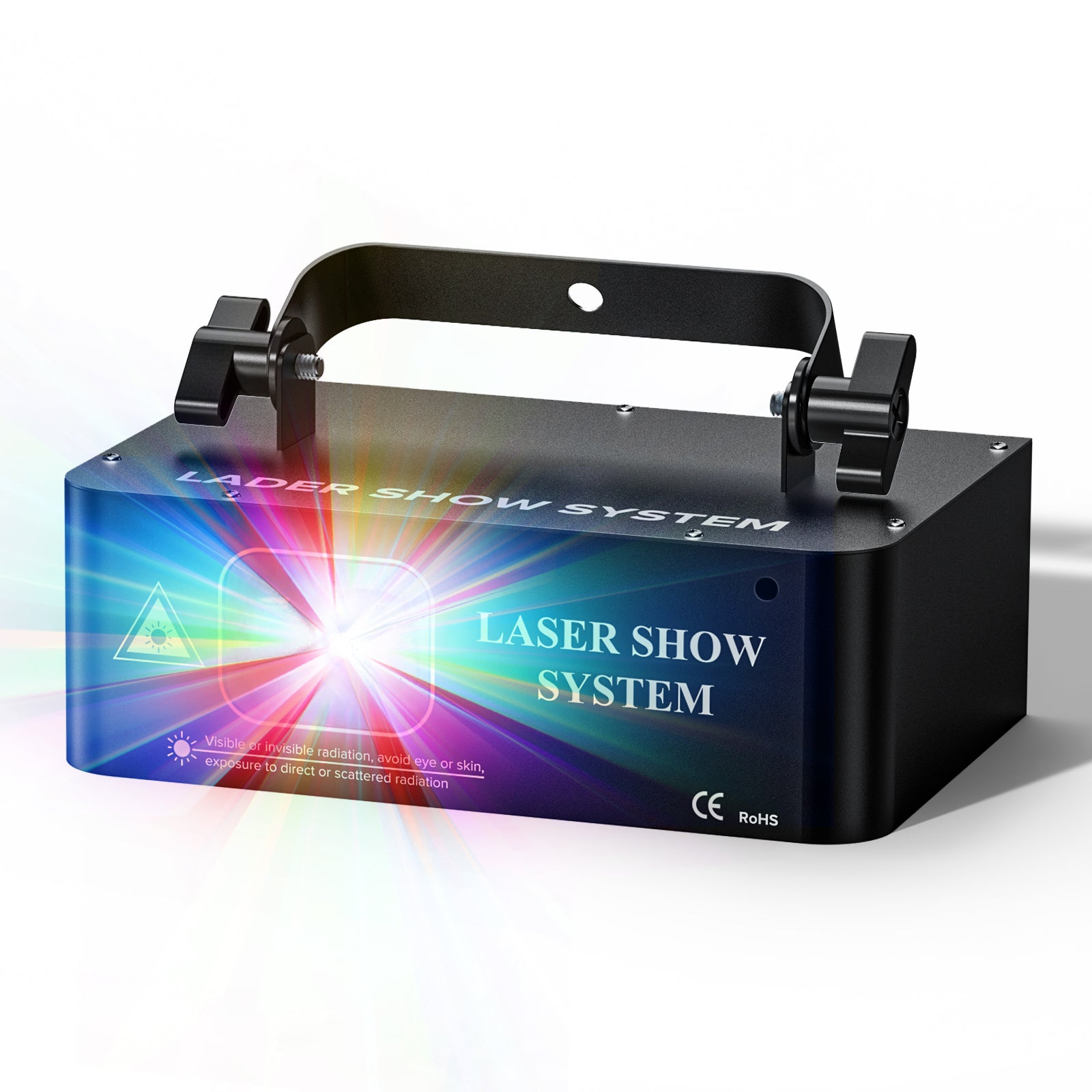

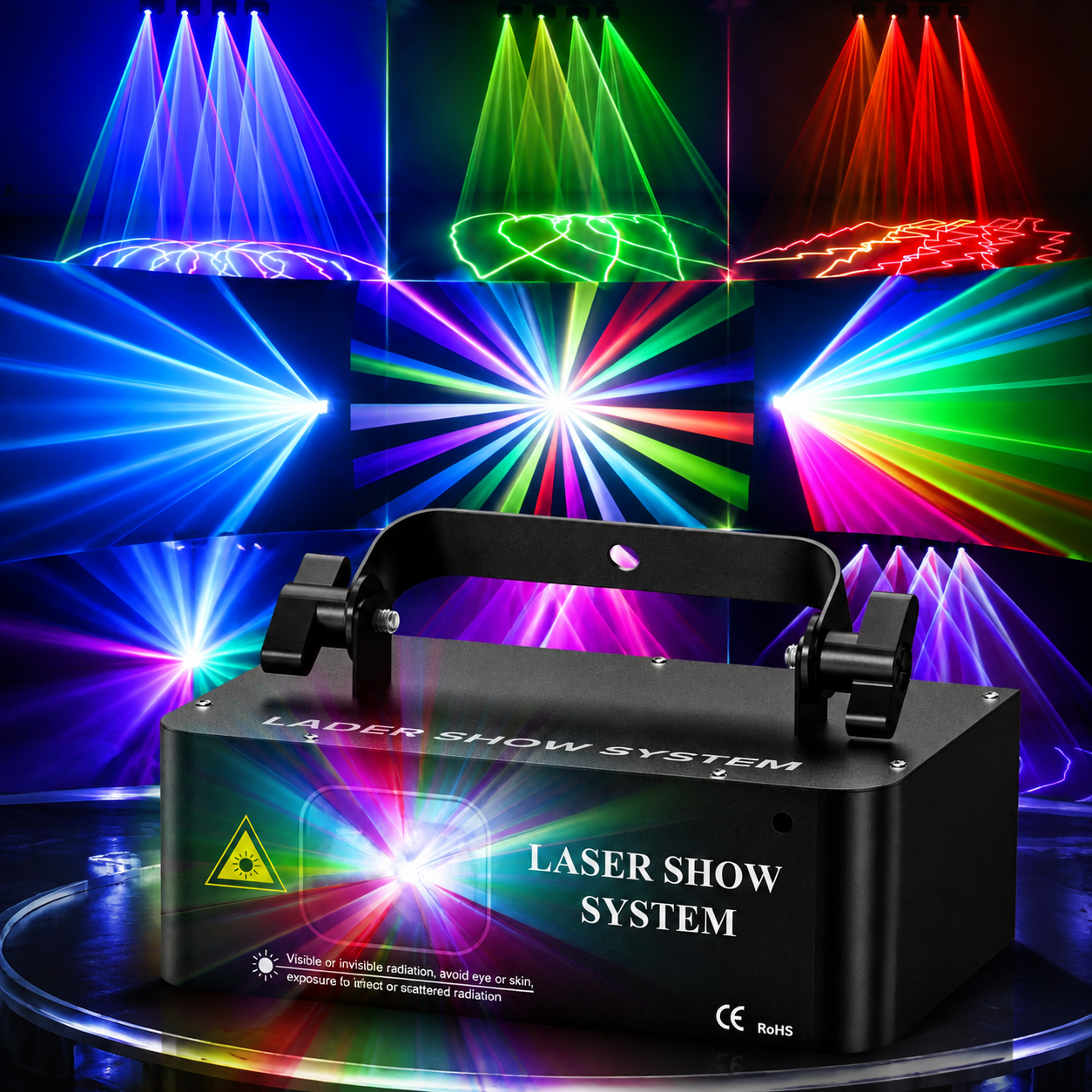

Single hole product specifications:

• 10 DMX channels
• 51 built-in patterns
• Smart cooling system. (Critical point: 20°C)
• Specification
• AC adapter: AC100V-240V, 50HZ-60HZ
• Rated power: 14W (maximum)
• Play mode: voice control, AUTO, DMX
• Laser: 500mW RGB laser (Red-650nm@150mW / Green-520nm@100mW / Blue-450nm@250mW)
• Graphics and Effects: Laser Scanning (Visit Video for Details)
• Warm up time: 1 minute
• Working environment: 0-40°C
• Size: 18*11.5*6.5cm

Dual-hole product specifications:

• Voltage: AC110-240V, 50/60Hz
• Power Consumption: 30W
• Light Source: Red beam 200mw, Green beam 100w, Blue beam 200mw
• Scanning system: using a high-speed and large-angle precision motor
• Lighting Effect: Fan shaped effect, wave effect, zoom in and out, dot effect, flip effect, dynamic animation etc
• Operation Mode: Auto, DMX512, Sound Activated, Master/Slave
• DMX Channel: 10CH
• Package Size: 11.14*7.87*6.30 Inch
• G.W: 4.81LB

3-hole product specifications：

• Power supply：AC100～230V ，50Hz/60Hz
• Laser power：Red 150mw Green 50mw Blue 100mw
• Laser wavelength： Red 650nm Green532nm Blue450nm
• Chassis Material：metal
• Scanning system: using precision stepper motor, large angle scanning system
• Effect：Control switching by DMX, simple and flexible operation, can demonstrate 51 kinds of pattern pattern beam scanning performance. Realize the laser effect of the laser fan network, the butterfly dance, and the radiance set by the International Laser Display Association.
• Applicable places: bar, Disco, Ballroom, KTV Room, Family Party
• Signal connection: signal input line / output line
• Control channel：10 DMX-512signal channel
• Control mode：international standard ILDAsignal、DMX-512signal control、sound、auto and master-slave
• Cooling system: fan forced cooling system
• Working environment：indoor 10-30°
• Packingmode: carton
• Inner box size：34*19*7CM or 43*15*13CM
• Carton size：70*50*34CM
• N.W：2.8kg

4-hole product specifications：

• Power supply: AC100～240V ，50Hz/60Hz
• Four-hole laser power：RGB 500mw*2
• Six-hole laser power: RGB 500mw * 3
• Laser wavelength：Red 638nm Green 532nm Blue 450nm
• Effects: fan effect, wave effect, zoom in and out, dot effect, flip effect, time tunnel, etc., controlled and switched by DMX, simple and flexible operation, can demonstrate more than 51 patterns and beam scanning performance effects
• Signal connection: signal input line/output line
• Control channel: 10 DMX-512 signal channels
• Control mode：DMX-512 signal control、sound、auto and master-slave mode
• Cooling system: fan forced cooling system
• Inner box size：51*21*18cm

6-hole product specifications：

• Power supply: AC100～240V ，50Hz/60Hz
• Four-hole laser power：RGB 500mw*2
• Six-hole laser power: RGB 500mw * 3
• Laser wavelength：Red 638nm Green 532nm Blue 450nm
• Effects: fan effect, wave effect, zoom in and out, dot effect, flip effect, time tunnel, etc., controlled and switched by DMX, simple and flexible operation, can demonstrate more than 51 patterns and beam scanning performance effects
• Signal connection: signal input line/output line
• Control channel: 10 DMX-512 signal channels
• Control mode：DMX-512 signal control、sound、auto and master-slave mode
• Cooling system: fan forced cooling system
• Inner box size：51*21*18cm
